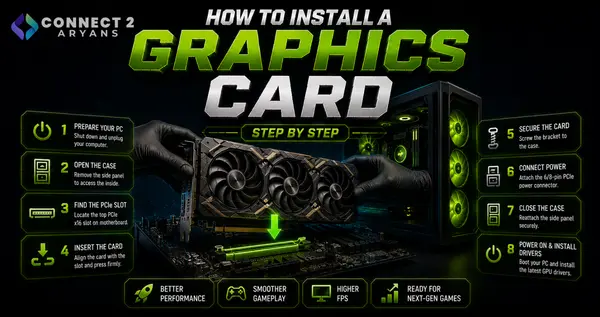

How to Install a Graphics Card Step by Step

Installing a graphics card is genuinely one of the simplest upgrades you can do yourself — no soldering, no delicate procedures, just careful handling and a few connections. The most important work actually happens before you even open the case: confirming everything is compatible. Here's the complete process.

Before You Start: Confirm Compatibility

• PSU wattage: confirm your power supply has enough headroom for your new GPU — check your PSU's rated wattage against the card's recommended requirements; mid-range GPUs generally need [[F: PSU Wattage | 600 - 650 Watts]] to [[F: PSU Wattage | 700 - 750 Watts]], while higher-end cards need [[F: PSU Wattage | 800 - 850 Watts]] or more
• PSU connectors: confirm your PSU has the correct PCIe power connectors for your specific GPU (some newer high-end cards use a 12VHPWR/12V-2x6 connector rather than traditional 6/8-pin) — if your current PSU lacks the right connectors, browse our [[C: Power Supply]] range for a compatible replacement
• Case clearance: check your case's maximum supported GPU length against your new card's actual dimensions, especially for larger triple-fan cards
• PCIe slot: confirm your motherboard has a free PCIe x16 slot, typically the top slot closest to the CPU for best performance

Tools and Preparation

• A Phillips screwdriver (usually all that's needed)
• An anti-static wrist strap (optional but recommended), or simply touch a grounded metal surface periodically during installation
• Enough clear workspace to lay the case on its side comfortably

Step 1: Power Off and Prepare Your PC

• Fully shut down your PC and unplug it from the wall — never install components with the system powered, even if just switched off
• Press the power button briefly after unplugging to discharge any residual power in the system
• Open your case's side panel (typically a few thumbscrews or a latch mechanism)

Step 2: Remove Your Old Graphics Card (If Applicable)

• Disconnect any PCIe power cables connected to the old card
• Release the PCIe slot's retention latch (usually a small clip at the end of the slot)
• Unscrew the card from the case's rear bracket
• Gently pull the card straight out of the PCIe slot, avoiding side-to-side rocking that could stress the slot

Step 3: Prepare the New Card's Slot

• If your motherboard supports it, some boards recommend disabling integrated graphics in BIOS before installing a dedicated GPU, though most current systems handle this automatically — check your specific motherboard's documentation if you experience issues later
• Ensure the PCIe slot area is free of dust before installing the new card, using compressed air if needed

Step 4: Install the New Graphics Card

• Align the card's connector with the PCIe x16 slot and the bracket with the case's rear expansion slot openings
• Press down firmly and evenly until the card clicks into the slot's retention latch — you should feel and hear a definitive click
• Screw the card's bracket securely to the case to prevent sagging over time, especially for larger, heavier cards

Step 5: Connect Power Cables

• Connect all required PCIe power connectors from your PSU directly to the GPU — partially connected cables are one of the most common causes of a no-display boot after installation
• If your card uses a 12VHPWR/12V-2x6 connector, ensure it's fully seated, since this connector type requires a firm, complete connection
• Double-check cable routing doesn't put stress on the connectors or interfere with case airflow

Step 6: Close the Case and Power On

• Close the side panel and reconnect all cables (power, monitor) to the system
• Connect your monitor to the new GPU's video output, not the motherboard's integrated graphics output if your CPU has one
• Power on the system and confirm it boots and displays properly

Step 7: Install Drivers

• Install the latest drivers directly from [[B: NVIDIA]], [[B: AMD]], or [[B: Intel]] depending on your GPU brand, rather than relying solely on Windows' automatic driver installation
• A clean driver installation (using the manufacturer's clean-install option if available) helps avoid conflicts with any previous GPU drivers still present on the system

Troubleshooting: No Display After Installation

• Check monitor cable connection to the GPU specifically, not the motherboard
• Reseat the GPU fully in the PCIe slot, confirming the retention latch has properly clicked
• Check all power connectors are fully and firmly seated
• Try a different monitor cable or port on the GPU to rule out a cable issue
• If none of these resolve it, the GPU itself, PSU, or motherboard slot may need further troubleshooting

Popular Graphics Card Brands

• [[B: NVIDIA]]
• [[B: AMD]]
• [[B: Intel]]

Common Mistakes to Avoid

• Skipping the PSU wattage and connector check before buying, discovering incompatibility after the card arrives
• Not screwing the card's bracket to the case, risking sag and stress on the PCIe slot over time
• Partially connecting PCIe power cables, causing a no-display boot
• Connecting the monitor to the motherboard's integrated graphics output instead of the new GPU

Final Thoughts

Installing a graphics card is straightforward once you've confirmed PSU wattage, connectors, and case clearance ahead of time — the physical installation itself takes just a few minutes. Most installation problems trace back to a skipped compatibility check or a partially connected cable, both entirely avoidable with a bit of care.
